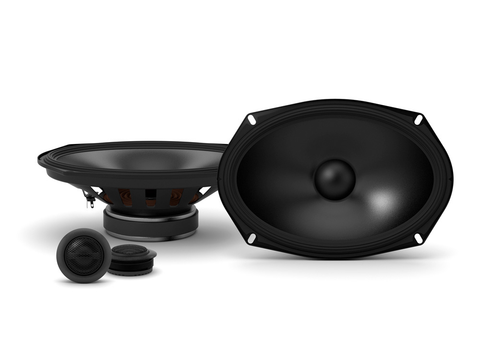

S-S69C - 6 x 9" (16 x 24 cm) Component 2-Way Speakers
The S-Series delivers amazingly high performance for this class of speaker. They boast the world’s first use of a CFRP diaphragm (Carbon Fiber Reinforced Plastic), which has the ideal balance of hardness and light-weight, for extremely clean and accurate sound. They also feature a larger voice coil than previous types for higher driving power, and the same HAMR surround as used on the X-Series.
The all-new Alpine S-Series speakers offer an amazing price vs. performance ratio and come in many configurations. They are perfect for OEM upgrades with many sizes to choose from to suit a wide variety of vehicles.
Peak Power: 260 Watts
RMS Power: 85 Watts
Frequency Response: 65 Hz - 22 kHz
FEATURES
Woofer
- CFRP (Carbon Fiber Reinforced Plastic) cone with spezialised rubber surround
- HAMR (High Amplitude Multi-Roll) Surround
- Large 35 mm Voice Coil
- Magnet Material: Ferrite
- Grill sold separately: KTE-S69G
Tweeter
- Tweeter Type: 1" Wide-Range Silk Dome
- Magnet Material: Neodymium
- Application Type: External/Swivel Tweeter Mounting Kit
- Flush mount
- Grill: Punched net
Crossover Network
- Grade: In-line 2nd order Network Design
SPECIFICATIONS
Power Handling
- Peak Power: 260 Watts
- RMS Power: 85 Watts (CTA-2031 Compliant)
Dimensions Woofer
- Frame 161 x 237 mm
- Mounting Depth: 74.4 mm
- Mounting Height: 7.4 mm
- Magnet: 100.0 mm
Dimensions Tweeter
- Frame: 37.8 mm
- Dome: 26.6 mm
- Height: 17.4 mm
General
- Frequency Range: 65 Hz - 22 kHz
- Impedance: 4 Ohms
- Sensitivity: 90 dB/W
