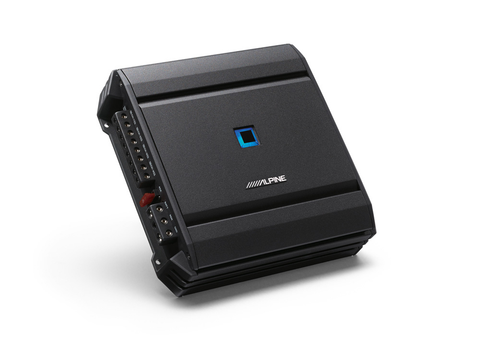

S-A32F - 4-Channel Power Amplifier
Alpine introduces the all-new S-Series amplifiers - a perfect match to the S-Series speakers. These amps have an excellent Watts-per-Euro ratio in the Class-D category, feature a very high heat resistance and won’t shut down due to overheating. They also feature excellent sound quality in their price range.
Three new S-Series amplifiers join the S-Series family, known for reliable performance and value-oriented products. All three S-Series amps (mono, 4-channel and 5-channel) contain technology currently implemented in R and X-Series models. The S-Series amps feature attractive prices and are designed to perform perfectly with the existing S-Series speakers.
Total Max Power: 640W
RMS Power (14.4V / 4 Ohms): 4 x 55W
RMS Power (14.4V / 2 Ohms): 4 x 80W
FEATURES
Install
- Terminal Layout: One side
- Small footprint for easy installation
- Screw terminals (for speaker and power cables)
General
- Amplifier Type: Class-D (Digital)
- Channel Design: 4/3/2 Channel
- Thermal Management Control
- Top Mounted LED Power/Status Indicator
- Speaker Level Input with remote turn on
- Crossover: Adjustable Low-pass (LPF) / High-pass Filter (HPF)
- Gain Control: Adjustable
- Bass Control: Remote Bass Control (RUX-KNOB2) Ready
SPECIFICATIONS
Max Power Output Ratings
- Total Max Power: 640W
RMS Power Ratings
- Per Channel into 2 Ohms, 14.4V (≤1%THD+N): 4 x 80W
- Per Channel into 4 Ohms, 14.4V (≤1%THD+N): 4 x 55W
- Bridged into 4 Ohms, 14.4V (≤1%THD+N): 2 x 160W
Sound Tuning
- Crossover: Variable LPF, 50-400Hz (-12dB/oct )
- Crossover: Variable HPF, 50-400Hz (-12dB/oct )
General
- Power Requirements: 14.4 V.DC (9 - 16 V allowable)
- Input Sensitivity (RCA Input): Hi: 0.5 - 10 V Lo: 0.2 - 4.0 V
- High Level Input with automatic power on
- Cable size: Power Cable AWG 8, SPK Cable AWG 10
- Frequency Response (+0, -3dB: 1W into 4 ohms) for CH-1/2/3/4: 10Hz - 30kHz
- THD+N (@ 10W into 4 ohms): <0.03%
- THD+N (@ 50W into 4 ohms): <0.08%
- Damping Factor: >100
- Signal to Noise (@ 50 Watts into 4 Ohms): >98dB
- Weight: 1.9 kg
Dimensions
- Heat Sink (WxHxD) mm: 204 x 58 x 204
