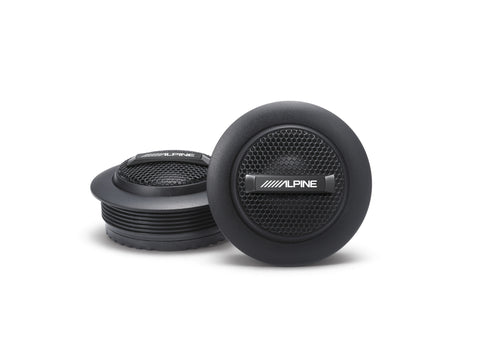

S-S10TW - 1" (2.5 cm) Silk Dome Tweeter Set
The S-S10TW Tweeter’s compact size and wide frequency range is an efficient and affordable upgrade to any factory or aftermarket sound system.
The tweeters measure at a mere 1” with a mounting depth of 17,6mm for easy installation in almost any vehicle. The tweeters can be flush mounted or installed with a high adjustable stealth OEM mount bracket (included), which allows them to be mounted on the top, bottom, or behind factory grill locations.
The Alpine logo is removable for stealth installation applications. Each soft dome comes enclosed in an adjustable swivel cup housing and directs the sound optimized for listener preference and vehicle imaging. For a perfect system matching experience, pair the S-S10TW with Alpine’s S-Series sound family.
Peak Power: 240 Watts
RMS Power: 80 Watts
Frequency Response: 1 kHz - 22 kHz
FEATURES
- Two 1” (2.5cm) Tweeters
- High-Grade Neodymium Motor Structure
- Silk Dome Tweeter Design
- Removable Alpine Logo
- Includes a 15-degree Swivel Flush Cup Housing
- Includes a height adjustable stealth OEM mount
- Compatible with Alpine’s S-Series
SPECIFICATIONS
Power Handling
- Peak Power Capacity: 240W
- Max RMS Power Capacity: 80W
Dimensions
- Flush Mounting Depth: 17.6mm
- Cutout Diameter: 51mm
General
- Crossover: Passive 12dB/Octave High-Pass Filter
- Frequency Response: 1kHz-22kHz
- Sensitivity: 88dB (1W / 1m)
- Impedance: 6 Ohms
