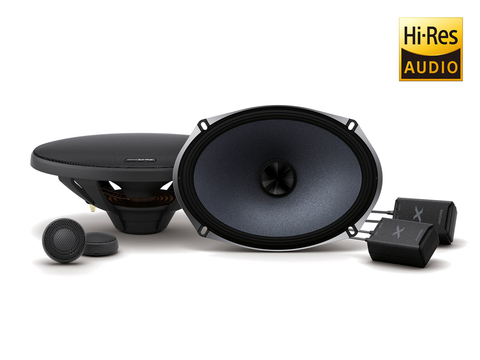

X-S69C - 6 x 9" (16 x 24 cm) Component 2-Way Speakers
Alpine introduces the all-new X-Series of high-grade speakers and amplifiers. These products have been engineered and tuned to create a perfect match for extraordinarily dynamic, realistic sound reproduction and a spatial sound impression. With Alpine X-Series speakers, you can enjoy Hi-Res Audio playback up to 40kHz with stunning detail and dynamic. These flagship speakers have been engineered and tuned with highest precision and use highest grade materials, while staying affordable and offering a wide vehicle compatibility.
Alpine uses high-power neodymium magnets for the new X-Series speakers. This means the magnet can be much smaller compared to traditional speaker designs, allowing for a much lower mounting depth and overall space requirement inside the car door.
By using a powerful Neodymium magnet in a radial configuration, we could achieve a very compact motor assembly for a high vehicle compatibility rate. The radial magnet configuration drastically increases magnetic efficiency – resulting in high dynamic and power handling.
Peak Power: 360 Watts
RMS Power: 120 Watts
Frequency Response: 45 Hz - 50 kHz
FEATURES
Tweeter
- 1′′ (2.5cm) Hard Dome Carbon Graphite Tweeter
- Neodymium Magnet
- Surface Mount Application
Woofer
- Nano-Fibre Cone
- Radial Ring Magnet Design
- HAMR Surround
- Large 35mm Voice Coil
- Ultra High Density Neodymium Magnet
- Shallow Mounting Design
Network
- Compact design for easy installation
- In-line Network Design
- Tweeter level Adjustment: 3 Steps (-3, 0, +3dB)
- Phase adjustment (normal / reverse)
- High Grade Network Components
SPECIFICATIONS
Power Handling
- Peak Power: 360 Watts
- RMS Power: 120 Watts
Dimensions
- Woofer Mounting Diameter: 148 x 223 mm
- Woofer Mounting Depth: 78 mm
- Crossover Size : 45 x 70 x 30 mm
General
- Frequency Response: 45 Hz - 50 kHz
- Impedance: 4 Ohms
- Recommended Amplification : 120 W RMS, per Channel
- Sensitivity : 89dB / W (1m)
