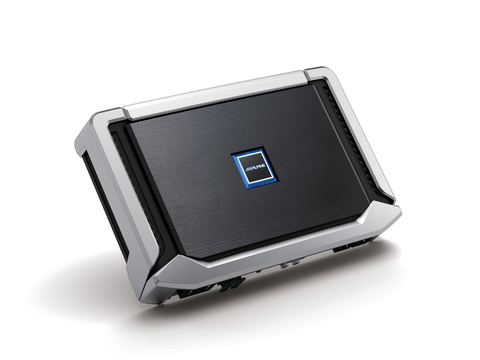

Alpine introduces the all-new X-Series of high-grade speakers and amplifiers. These products have been engineered and tuned to create a perfect match for extraordinarily dynamic, realistic sound reproduction and a spatial sound impression.

The all-new X-Series amplifiers set a new standard for sound quality performance and power output in a very compact design. Available in mono, four channel and five channel configuration, these amps are a perfect match for the all-new X-Series speakers and subwoofers.

Total Max Power: 1400W

RMS Power (14.4V / 4 Ohms): 4 x 120W

RMS Power (14.4V / 2 Ohms): 4 x 175W

FEATURES

Install

• Terminal Layout: One side
• Screw Mount / Wire Cover: Plug Type Connector (PWR and SPK Terminal)
• Mounting Design: Easy Stacking and Smart Installation

General

• Amplifier Type: Class-D (Digital)
• Channel Design: Channel Design: 4/3/2 Channel
• Thermal Control: Thermal Management Control
• Power Supply: PWM regulated Interleaved flyback with active clamp
• Board Circuitry: S.T.A.R. Circuitry
• Power Indicator: Top Mounted LED Power/Status Indicator
• Speaker Level Input with remote turn on
• Crossover: Adjustable Low-pass (LPF) / High-pass Filter (HPF)
• Gain Control: Adjustable
• Bass Control: Remote Bass Control (RUX-KNOB2) Ready

SPECIFICATIONS

Max Power Output Ratings

• Total Max Power: 1400W

RMS Power Ratings

• Per Channel into 4ohms, 14.4V (≤1%THD+N): CH 1-4 4 x 120W
• Per Channel into 2ohms, 14.4V (≤1%THD+N): 4 x 175W
• Bridged into 4ohms, 14.4V (≤1%THD+N): 2 x 350W

Sound Tuning

• Crossover: Variable LPF, 50-400Hz (-12dB/oct )
• Crossover: Variable HPF, 50-400Hz (-12dB/oct )

General

• Power Requirements: 14.4 V.DC (9 - 16 V allowable)
• Input Sensitivity (RCA Input): Hi: 0.5 - 10 V Lo: 0.2 - 4.0 V
• High Level Input with automatic power on
• Cable size: Power Cable 4AWG (20mm2), SPK Cable 8AWG (8mm2)
• Frequency Response (+0, -3dB: 1W into 4 ohms) for CH-1/2/3/4: 10Hz - 60kHz
• THD+N (10W into 4 ohms): <0.02%
• THD+N (120W into 4 ohms): <0.07%
• Damping Factor: >500
• Signal to Noise (Rated Power into 4 ohms): >106dB
• Weight: 3.2 kg

Dimensions

• Heat Sink (WxHxD) mm: 297 x 51 x 192
