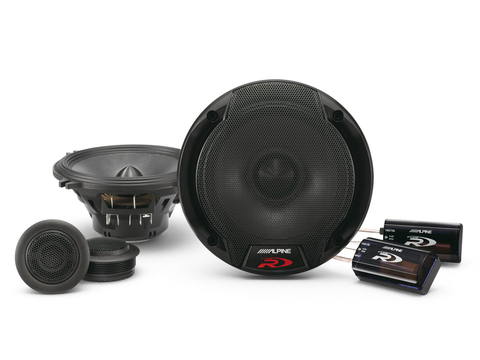

SPR-50C - 5-1/4" (13cm) Component 2-Way Speakers
Type-R speakers are engineered to deliver prodigious power while maintaining extreme sound clarity, for totally exciting sound. They provide high power handling, wide frequency response and a powerful bass kick. The Type-R series includes both component and coaxial models, both of which are highly efficient and provide good installability in a wide range of vehicles.
Thanks to a powerful, compact neodymium magnet, small network and slim basket, the Type-R speakers are much more compact than you would expect, allowing installation in the doors of a wide range of vehicles.
Both component and coaxial models feature a ring tweeter that swivels to improve off-axis response in less-thanideal locations. You can aim it by hand for best imaging and staging at your listening position.
Peak Power: 300 Watts
RMS Power: 100 Watts
Frequency Response: 70 Hz - 29 kHz
FEATURES
Tweeter
- 1′′ (2.5cm) Ring Radiator Tweeter
- Large Aluminum Voice Coil
- Neodymium Magnet
- Swivel Application
- Flush Mount, Surface Mount Application
Woofer
- Hybrid Multi Layer Cone
- Linear Drive Technology
- HAMR Surround
- Large Aluminum Voice Coil
- Copper Square Wire
- Ultra High Density Neodymium Magnet
- DX Ring
- Wave Guide
- Shallow Mounting Desing
- Bi-Amp Ready Design
Crossover Network
- In-line Network Design
- Attenuation Control: 4 Step (0, -2, -4, -6 dB)
- High Grade Network Components
- Others: Pure Copper Trace-Style Resistance Circuit Board
SPECIFICATIONS
Power Handling
- Peak Power: 300 Watts
- RMS Power: 100 Watts
Dimensions
- Woofer Mounting Diameter: 118 mm
- Woofer Mounting Depth: 57 mm
- Tweeter Mounting Diameter: 58 mm
- Tweeter Mounting Depth: 19 mm
General
- Frequency Response: 70 Hz - 29 kHz
- Impedance: 4 Ohms
- Sensitivity: 87 dB/W (1m)
