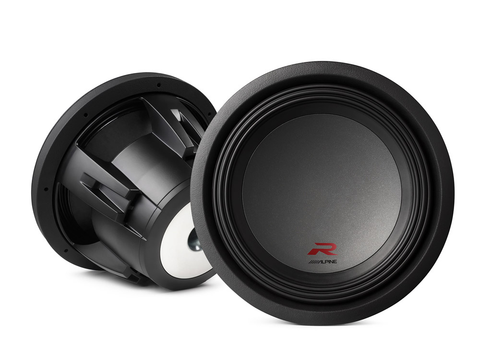

R-W12D4 - 12′′ (30 cm) Subwoofers (4Ω + 4Ω)

£229⁰⁰

Alpine is proud to announce the introduction of the new R-Series Subwoofer lineup that is built off the highly esteemed Type R platform. With select key design and build improvements, the R-Series Subwoofer is able to output more of that deep bass extension and control that the Type-R is known for.

R-Series subwoofers feature a Kevlar-treated cone for durability. The combination of this cone with the Santoprene surround allows the subwoofer to deliver 19mm of X-max, for incredible, hard-hitting bass. A new method of attaching the spider and cone to the voice coil ensures not only rigidity throughout the motor structure but contributes to the subwoofers increased accuracy.

Peak Power: 2250 Watts

RMS Power: 750 Watts

Frequency Response: 24 Hz - 200 Hz

FEATURES

Diaphram

Material: Oversized Hairline-Textured Mica Poly Dustcap w /
Kevlar Reinforced Pulp Paper Cone Body
Design: 2-Piece Parabolic

Surround

Material: Injected Molded Santoprene®
Design: High Amplitude Multi-Roll H.A.M.R Surround Design (Patent Pending)

Spider

Material: Conex®
Design: 10 Segment High-Roll Progressive Design

Voice Coil

Material: 180ºC High Temp Wire on Sprial-Cut Aluminum Bobbin
Design: 4-Layer Dual Voice Coil

Motor Structure

Pole Geometry: FEA Optimized Design w/ Compound Radius Pole Geometry
Configuration: Radial Vented VC Heat Sink and Airflow Management System (Patent #7,634,101)

Frame

Material: Cast Aluminum
Design: Perimeter Vented Heat Transfer (Patent Pending), Integrated Shorting Sleeve and Airflow Management System

Terminals

Layout: One Sided
Design: Heavy Duty 8 gauge Push with Housing, Banana Plug Jumper

Tinsel Leads

Design: Reinforced Layer Spider Integration (Patent #6,810,988)

Gasket

Design: Concealed Mount Gasket System

SPECIFICATIONS

Power Handling

RMS Power Handling: 750W
Peak Power Handling: 2250W

Dimensions

Mounting Depth: 162mm
Mounting Diameter: 275mm
Displacement: 0.10 cu. Ft.
Added Volume: 0.09 cu. ft. (Reverse Mount, Magnet Out)

General

Frequency Response: 24Hz - 200Hz
