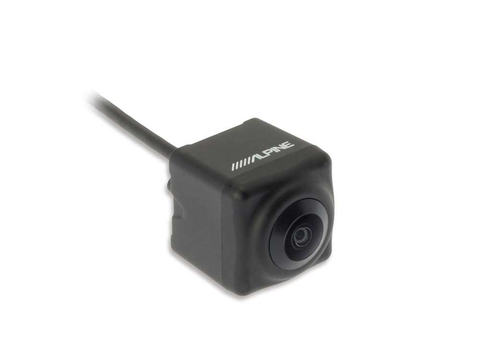

Alpine’s all new HDR cameras are simply amazing and offer many new technologies that make manoeuvring your vehicle easier and safer.

• High-resolution camera for great picture quality and high details
• Amazing night-view capabilities in low-light environments
• Fast exposure adjustment when moving from dark to bright environments (for example underground parking, tunes, etc)
• New, small connectors for easy installation of camera and cables

FEATURES

General

• High Dynamic Range (HDR) Side View Image
• RCA Video Signal (NTSC) Output
• Alpine direct to RCA adapter included

Camera

• Negative Ground Type
• Color CMOS Image Sensor
• Automatic Exposure Adjustment
• Automatic White Balance Adjustment
• Internal Synchronization

SPECIFICATIONS

Dimensions

• Camera: 23.6 x 23.6 x 26.5mm (excluding projection on the rear)
• Power Section: 38.0 x 25.0 x 15.0mm (excluding projection)
• Camera Cable Length: 0.75m
• Camera Extension Cable Length: 3.5m
• Power Unit (Reverse/ACC/Video/GND): 3m

General

• Power Requirement: DC 9V to DC 15.6V
• Power Consumption: 1.2W (12V)
• Operating Temperature (Power Section): -30°C - +70°C
• Weight Camera: 33g (camera only)
• Weight Power Section: 83g (including cord)

Camera

• Ground Type: Negative Ground Type
• Output Image: Composite Video NTSC
• Image Output Impedance: 75 Ohms (1Vp-p)
• Image Sensor: 1/3.7 inch CMOS image sensor, Aspect Ratio 4:3
• Effective Number of Pixels: 640 (H) x 480 (V), Approximately 300,000 pixels
• Lens Focal Length: f=2.8mm
• Lens Brightness: F=1:2.0
• Angle of Field: Horizontal = 82.7° , Vertical = 60.5°
• S/N Ratio: 40.5 dB or more
• Resolution (Horizontal. Center Area): 330 TV Lines
• Operating Temperature: -30°C - +70°C
• Illumination Range: Approximatly 1.5Lx to 100kLx
