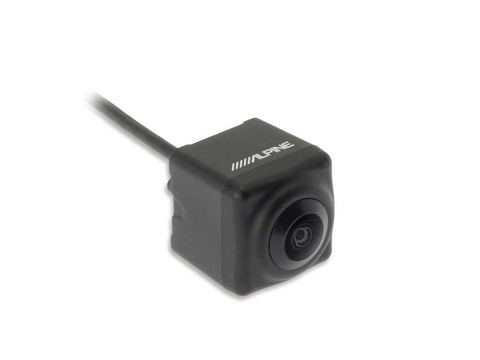

Alpine’s all new HDR cameras are simply amazing and offer many new technologies that make manoeuvring your vehicle easier and safer.

• High-resolution camera for great picture quality and high details
• Amazing night-view capabilities in low-light environments
• Fast exposure adjustment when moving from dark to bright environments (for example underground parking, tunes, etc)
• New, small connectors for easy installation of camera and cables

FEATURES

General

• High Dynamic Range (HDR) Rearview Image
• Direct Camera Connection
• Vehicle Reverse Signal Synchronization
• Multi View Angle Selection: Rear View [Back], Panorama View [Panorama], Ground View [Top], Corner View [Corner]
• For use with Alpine monitors with touch-screen operation
• For use without a touch-screen display, the HDR Multi View Front Camera (HCE-C2600FD), sold separately, is required.

Camera

• Mirror Image Output
• Color CMOS Image Sensor
• Automatic Exposure Adjustment
• Automatic White Balance Adjustment
• Internal Synchronization

SPECIFICATIONS

Dimensions

• Camera: 23.6 x 23.6 x 25.8mm (excluding projection on the rear)
• Camera Cable Length: 0.5m
• Camera Extension Cable Length: 10m

General

• Power Requirement: 6.0V DC (5.0 to 9.0VDC allowable)
• Ground Type: Negative Ground
• Max. Power Consumption: 1.2W (6.0V)

Camera

• Output Image: Mirror image, CVBS (NTSC Video signal), for 16:9 wide-screen
• Image Output Impedance: 75 Ohms (1Vp-p)
• Image Sensor: 1/4" Type Color CMOS Image Sensor, Aspect Ratio 4:3
• Effective Number of Pixels: 1280 (horizontal) x 960 (vertical) approximately 1.2 Mega pixels
• Lens Focal Length: f=1.27mm
• Lens Brightness: F=1.8
• Angle of Field: Horizontal = 180° , Vertical = 125°
• Resolution (Horizontal. Center Area): 330 TV Lines
• Operating Temperature: -30°C - +70°C
• Illumination Range: Approximatly 1.5Lx to 100kLx
• Weight: 32g (including cable but not including bracket and screw)
