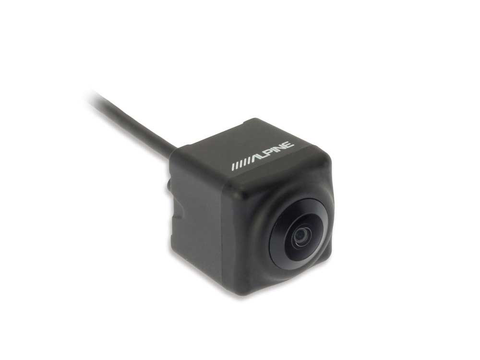

Alpine’s all new HDR cameras are simply amazing and offer many new technologies that make manoeuvring your vehicle easier and safer.

• High-resolution camera for great picture quality and high details
• Amazing night-view capabilities in low-light environments
• Fast exposure adjustment when moving from dark to bright environments (for example underground parking, tunes, etc)
• New, small connectors for easy installation of camera and cables

FEATURES

General

• Rearview Image
• Direct Camera Connection
• Vehicle Reverse Signal Synchronization

Camera

• Mirror Image Output
• Color CMOS Image Sensor
• Automatic Exposure Adjustment
• Automatic White Balance Adjustment
• Internal Synchronisation

SPECIFICATIONS

Dimensions

• Camera: 23.6x 23.6x 24.0mm (excluding projection on the rear)
• Camera Cable Length: 0.5m
• Camera Extension Cable Length: 10.5m

General

• Power Requirement: 6.0 V.DC
• Negative Ground
• Max. Power Consumption: 0.5W
• Weight Camera: 27g (including cable)

Camera

• Output Image: Mirror Image, Composite Video (NTSC Color Signal System)
• Image Output: 1 Vp-p (75 Ohms)
• Image Sensor: 1/3.7 inch CMOS Image Sensor, Aspect Ratio 4:3
• Effective Number of Pixels: 640 (H) x 480 (V), Approximately 0.3 Mega pixels
• Lens Focal Length: f=1.34mm
• Lens Brightness: F=1:2.0
• Angle of Field: Horizontal = 131°, Vertical = 103°
• S/N Ratio: 40.5 dB or more
• Resolution (Horizontal. Center Area): 330 TV Lines
• Operating Temperature: -30°C - +70°C
• Illumination Range: Approximately 1.5 to 100klx
