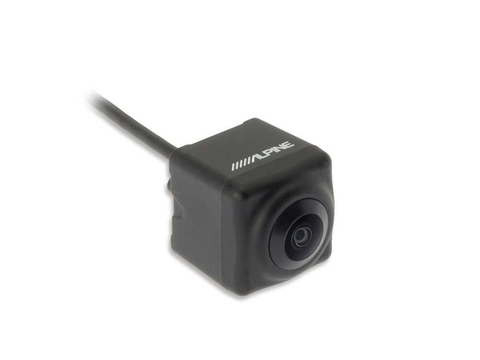

HCE-C1100 - HDR Rear View Camera with RCA Connection
Alpine’s all new HDR cameras are simply amazing and offer many new technologies that make manoeuvring your vehicle easier and safer.
- High-resolution camera for great picture quality and high details
- Amazing night-view capabilities in low-light environments
- Fast exposure adjustment when moving from dark to bright environments (for example underground parking, tunes, etc)
- New, small connectors for easy installation of camera and cables
FEATURES
General
- Rearview Image
- Direct Camera Connection
- Vehicle Reverse Signal Synchronization
Camera
- Mirror Image Output
- Color CMOS Image Sensor
- Automatic Exposure Adjustment
- Automatic White Balance Adjustment
- Internal Synchronisation
SPECIFICATIONS
Dimensions
- Camera: 23.6x 23.6x 24.0mm (excluding projection on the rear)
- Camera Cable Length: 0.5m
- Camera Extension Cable Length: 10.5m
General
- Power Requirement: 6.0 V.DC
- Negative Ground
- Max. Power Consumption: 0.5W
- Weight Camera: 27g (including cable)
Camera
- Output Image: Mirror Image, Composite Video (NTSC Color Signal System)
- Image Output: 1 Vp-p (75 Ohms)
- Image Sensor: 1/3.7 inch CMOS Image Sensor, Aspect Ratio 4:3
- Effective Number of Pixels: 640 (H) x 480 (V), Approximately 0.3 Mega pixels
- Lens Focal Length: f=1.34mm
- Lens Brightness: F=1:2.0
- Angle of Field: Horizontal = 131°, Vertical = 103°
- S/N Ratio: 40.5 dB or more
- Resolution (Horizontal. Center Area): 330 TV Lines
- Operating Temperature: -30°C - +70°C
- Illumination Range: Approximately 1.5 to 100klx
