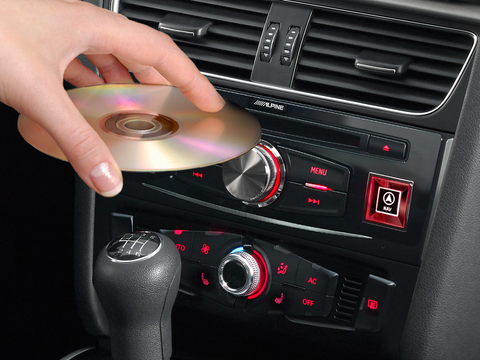

Upgrade your Alpine infotainment system with DVD playback capability. The DVE-5300X is designed to fit exactly behind the audio control panel to be easily reached from the driver’s seat. It uses HDMI technology for stunning image quality and can be fully controlled from the touch screen or the Alpine control panel.

Compatible with Alpine Style systems for Audi A4 and Q5

Installation behind Alpine control pannel

HDMI Output

FEATURES

Disc Player

• Disc Type: DVD/CD Player
• Disc Playback Type: DVD-Video, CD, CD-R/RW, DVD±R/±RW
• Playable Format: DVD-Video, CDDA, MP3/WMA/AAC, DivX
• M.I.X. Random Play
• Repeat
• DVD Direct Menu Control
• CD Text Display
• CD Text Name Search
• DAC: 24 Bit DAC

General

• HDMI Output (cable included)
• Optical Output

SPECIFICATIONS

Disc Player

• Frequency Response: 5 - 20,000Hz (±1 dB)
• Total Harmonic Distortion (at 1kHz): 0.02%
• Dynamic Range (at 1kHz): 95 dB
• Signal-to-Noise Ratio: 95 dB
• Channel Separation (at 1kHz): 65 dB
• Wow & Flutter (%WRMS): Below measurable limits
• Signal-to-Noise Ratio (Video): 60 dB
• HDMI Output Format 480p

General

• Power Requirements: 14.4 V.DC (11-16V allowable)
• Maximum Mounting Angle: 30°
• Weight: 1.2 kg

Dimensions

• Chassis Size (W x H x D) mm: 170 mm x 50 mm x 154 mm
