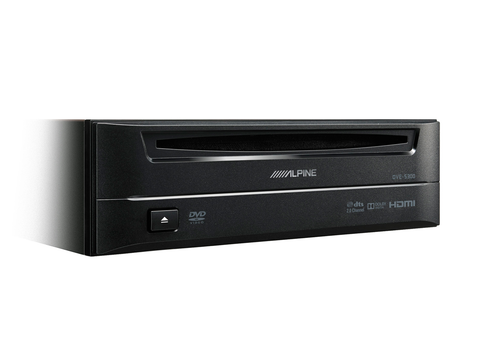

Upgrade your Alpine Infotainment system with DVD and CD playback capability. The DVE-5300G fits perfectly in the Golf 7’s original VW CD drive compartment in the glove box. It uses HDMI technology for stunning image quality and can be fully controlled from the touch screen. All installation parts are included.

If your Golf is not equipped with a disk drive in the glove box, the installation of the DVE-5300G requires the VW glove box insert with disc drive mount.
Please contact your local VW service centre for details.

Compatible with Volkswagen Golf 7

Made for Alpine X901D-G7, X902D-G7, i902D-G7

HDMI Output

FEATURES

Disc Player

• Disc Type: DVD/CD Player
• Disc Playback Type: DVD-Video, CD, CD-R/RW, DVD±R/±RW
• Playable Format: DVD-Video, CDDA, MP3/WMA/AAC, DivX
• M.I.X. Random Play
• Repeat
• DVD Direct Menu Control
• CD Text Display
• CD Text Name Search
• DAC: 24 Bit DAC

General

• HDMI Output (cable included)
• Optical Output
• Remote Control Included

SPECIFICATIONS

Disc Player

• Frequency Response: 5 - 20,000Hz (±1 dB)
• Total Harmonic Distortion (at 1kHz): 0.02%
• Dynamic Range (at 1kHz): 95 dB
• Signal-to-Noise Ratio: 95 dB
• Channel Separation (at 1kHz): 65 dB
• Wow & Flutter (%WRMS): Below measurable limits
• Signal-to-Noise Ratio (Video): 60 dB
• HDMI Output Format 480p

General

• Power Requirements: 14.4 V.DC (11-16V allowable)
• Maximum Mounting Angle: 30°
• Weight: 1.2 kg

Dimensions

• Chassis Size (W x H x D) mm: 170 mm x 50 mm x 154 mm
