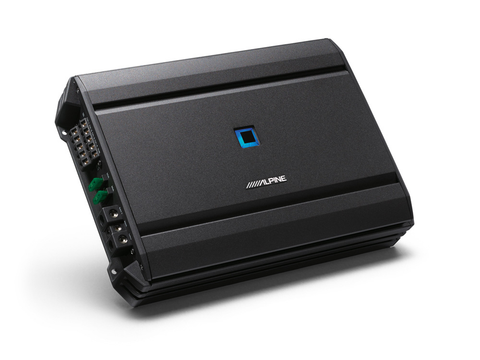

S-A55V - 5-Channel Power Amplifier

£329⁰⁰

Alpine introduces the all-new S-Series amplifiers - a perfect match to the S-Series speakers. These amps have an excellent Watts-per-Euro ratio in the Class-D category, feature a very high heat resistance and won’t shut down due to overheating. They also feature excellent sound quality in their price range.

Three new S-Series amplifiers join the S-Series family, known for reliable performance and value-oriented products. All three S-Series amps (mono, 4-channel and 5-channel) contain technology currently implemented in R and X-Series models. The S-Series amps feature attractive prices and are designed to perform perfectly with the existing S-Series speakers.

Total Max Power: 1100W

RMS Power (14.4V / 4 Ohms): 4 x 40W + 1 x 200W

RMS Power (14.4V / 2 Ohms): 4 x 60W + 1 x 300W

FEATURES

Install

Terminal Layout: One side
Small footprint for easy installation
Screw terminals (for speaker and power cables)
Heavy gauge power terminals (AWG 4)

General

Amplifier Type: Class-D (Digital)
Channel Design: 5/4/3 Channel
Thermal Management Control
Top Mounted LED Power/Status Indicator
Speaker Level Input with remote turn on
Crossover: Adjustable Low-pass (LPF) / High-pass Filter (HPF)
Gain Control: Adjustable
Bass EQ (subwoofer channel)
Bass Control: Remote Bass Control (RUX-KNOB2) Ready

SPECIFICATIONS

Max Power Output Ratings

Total Max Power: 1100W

RMS Power Ratings

Per Channel into 2 Ohms, 14.4V (≤1%THD+N): 4 x 60W + 1 x 300W
Per Channel into 4 Ohms, 14.4V (≤1%THD+N): 4 x 40W + 1 x 200W
Bridged into 4 Ohms, 14.4V (≤1%THD+N): 2 x 120W

Sound Tuning

Crossover: Variable LPF, 50-400Hz (-12dB/oct )
Crossover: Variable HPF, 50-400Hz (-12dB/oct )

General

Power Requirements: 14.4 V.DC (9 - 16 V allowable)
Input Sensitivity (RCA Input): Hi: 0.5 - 10 V Lo: 0.2 - 4.0 V
High Level Input with automatic power on
Cable size: Power Cable AWG 4, SPK Cable AWG 12
Frequency Response (+0, -3dB: 1W into 4 ohms) for CH-1/2/3/4: 10Hz - 30kHz
Frequency Response (+0, -3dB: 1W into 4 ohms) for CH-5: 10Hz - 400Hz
THD+N (@ 10W into 4 ohms): <0.03%
THD+N (@ 50W into 4 ohms): <0.07%
Damping Factor: Channel 1/2/3/4: >100, Channel 5: >750
Signal to Noise (@ 50 Watts into 4 Ohms): >98dB
Weight: 2.9 kg

Dimensions

Heat Sink (WxHxD) mm: 286 x 58 x 204
